Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance

  • Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
  • Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
  • Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
  • Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
  • Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
  • Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
  • Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
Herkunftsort China
Markenname CSQ
Zertifizierung FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Modellnummer Sonderanfertigungen
Min Bestellmenge 20-50 PC
Preis negotiable
Verpackung Informationen Schaumstoff + Karton
Lieferzeit 20-45 Arbeitstage
Zahlungsbedingungen t/t
Versorgungsmaterial-Fähigkeit 2000 Stück pro Monat

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Name Kundengebundenes keramisches Gleitlager Kategorie Keramisches Pumpenlager
Material Drucklos gesintertes Siliziumcarbid/Zirkonium Größe Nach Maßgabe der Zeichnungen
Verwenden Spaltrohrmotorpumpe Paket Schaumstoff + Karton
Keyword mit einer Breite von nicht mehr als 50 mm Type entscheidendes Getriebeteil
Hervorheben

Silicon Carbide sliding bearing for pumps

,

Corrosion resistant ceramic sliding bearing

,

Canned motor pump sliding bearing
Hinterlass eine Nachricht
Produkt-Beschreibung
Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance
Product Specifications
Attribute Value
Name Customized ceramic sliding bearing
Category Ceramic pump bearing
Material Pressureless sintered silicon carbide/Zirconia
Size Customized, according to the drawings
Use Canned motor pump
Package Foam + carton box
Product Description

Sliding bearing is a crucial transmission part, serving as the support and rotary unit of canned motor pump. With excellent corrosion resistance and wear resistance properties, silicon carbide (SSiC) is one of the best materials for pump sliding bearings.

Key Features
  • High Load Capacity: Made of high-strength alloy steel and SSIC for extreme pressure/temperature resistance
  • Low Friction: Hardened surface or coatings reduce wear
  • Dynamic Balance: Precision-balanced to prevent vibrations at high speeds
Applications
  • Aerospace (engine thrust systems)
  • Energy (wind turbines, gas turbines)
  • Industrial machinery (pumps, gearboxes)
Canned Motor Pump Applications

1. The canned motor pump is suitable for typical corrosive environments involving inorganic substances, acids, alkalis, and salts. In these applications, sintered silicon carbide (SSiC) serves as the standard material for sliding bearings.

2. The canned motor pump can operate in both common corrosive conditions and with media that are prone to vaporization.

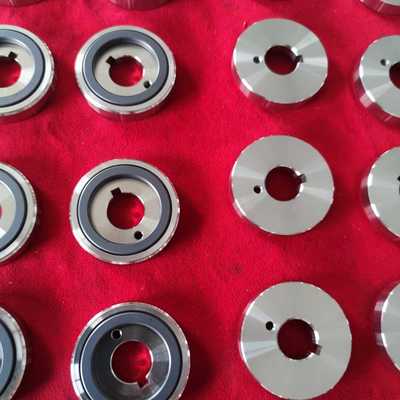

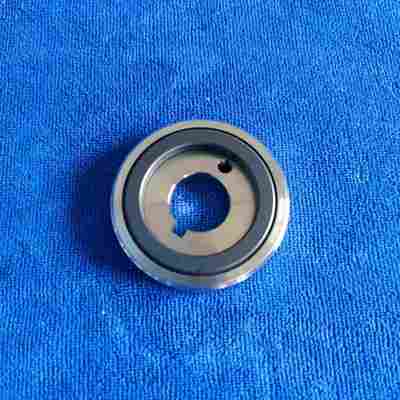

Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance 0 Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance 1
Key Properties of Pressureless Sintered Silicon Carbide
Max Temperature Up to 1650℃
Density 3.15-3.18 g/cm³
Thermal Expansion 4.0 (10-6/℃)
Thermal Conductivity 120 W/m°K
Hardness 2800 HV5
Elastic Modulus 410 GPa
Chemical Stability Superior resistance to acid and alkali corrosion (including hydrofluoric acid)

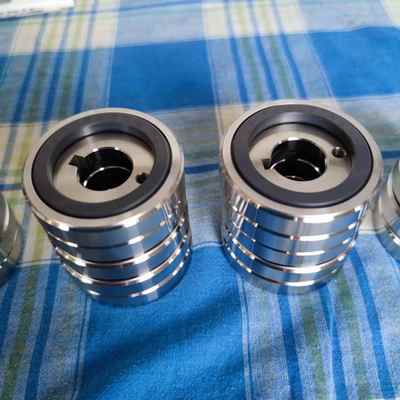

Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance 2
Our Manufacturing Capabilities

We operate three factories in China to meet diverse customer needs, equipped with advanced pressing, sintering, and processing machinery.

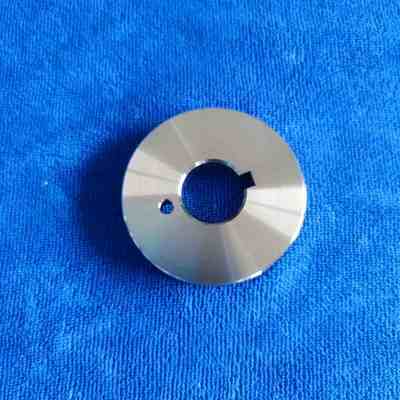

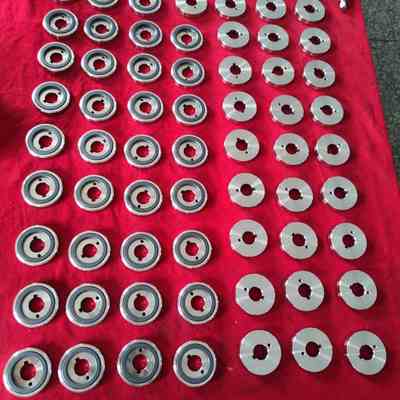

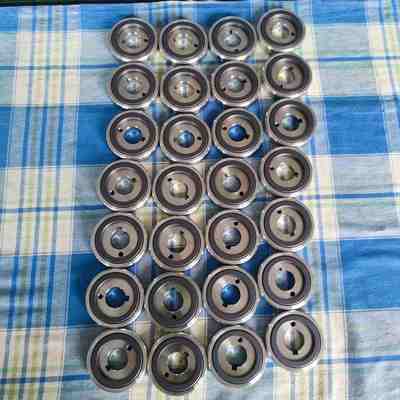

Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance 3 Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance 4 Silicon Carbide Sliding Bearing for Canned Motor Pump with Excellent Corrosion Resistance 5
