Customizable Sliding Bearing SiC Sleeve for Canned Motor Pump

  • Customizable Sliding Bearing SiC Sleeve for Canned Motor Pump
  • Customizable Sliding Bearing SiC Sleeve for Canned Motor Pump
  • Customizable Sliding Bearing SiC Sleeve for Canned Motor Pump
Herkunftsort China
Markenname CSQ
Zertifizierung FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Modellnummer individuelle Produkte
Min Bestellmenge 20-50 PCs
Preis negotiable
Verpackung Informationen Schaumstoff+Kartonbox
Lieferzeit 20-45 Arbeitstage
Zahlungsbedingungen T/T
Versorgungsmaterial-Fähigkeit 2000pcs pro Monat

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Name Individuelles Keramikschieberlager Kategorie Keramikpumpe
Material Drucklosen ohne Sinter -Silizium -Carbid/Zirkonia Größe Nach den Zeichnungen angepasst
Verwenden Motorpumpe in Konserven Paket Schaumstoff+Kartonbox
Stichwort Motorpumpe in Konserven Typ entscheidender Übertragungsteil
Hinterlass eine Nachricht
Produkt-Beschreibung

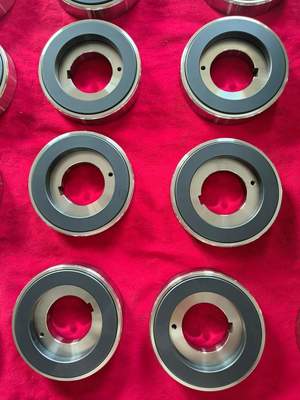

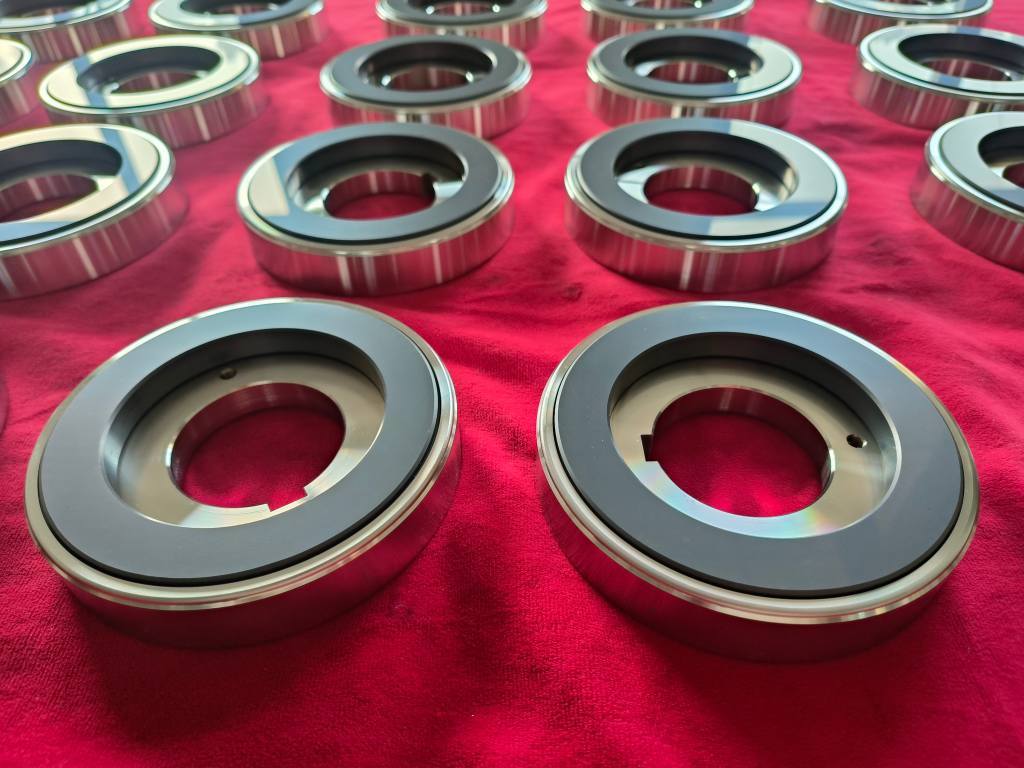

Sliding Bearing SiC Sleeve for Canned Motor Pump
Silicon Carbide (SiC) Sleeve and Thrust Disc Assembly

The Sleeve and Thrust Disc Assembly is a critical component of sliding bearings, serving as both the support and rotational unit in canned motor pumps. Silicon carbide (SSiC) is renowned for its outstanding corrosion resistance, wear resistance, and superior material properties, making it one of the most ideal sliding bearing materials for such pumps.

Key Features
  • Superior Wear Resistance: High hardness and low friction coefficient of SiC (SSiC/SiC) ensure extended service life.
  • Corrosion Resistance: Immune to acids, alkalis, and high-temperature fluids, ideal for aggressive media.
  • Thermal Stability: Low thermal expansion maintains dimensional accuracy under high-speed rotation.
  • Customizable: Available in standard or integrated designs to fit various pump models.
Typical Uses
  • Chemical process pumps, nuclear coolant systems
  • High-purity fluid transfer (e.g., semiconductor-grade chemicals)
  • Sealless solutions for extreme pressure/temperature conditions
Main Applications of Canned Motor Pump
  • Used in common corrosive conditions with inorganic matter, acid, alkaline and salt media (SSiC as standard sliding bearing)
  • Used in corrosive conditions with media that vaporizes easily
Key Properties of Pressureless Sintered Silicon Carbide
Max Temperature Up to 1650℃
Density 3.15-3.18 g/cm³
Thermal Expansion 4.0 (10⁻⁶/℃)
Thermal Conductivity 120 W/m°K
Hardness 2800 HV5
Elastic Modulus 410 GPa
Chemical Stability Superior resistance to acid and alkali corrosion (including hydrofluoric acid)
Customizable Sliding Bearing SiC Sleeve for Canned Motor Pump 0 Customizable Sliding Bearing SiC Sleeve for Canned Motor Pump 1 Customizable Sliding Bearing SiC Sleeve for Canned Motor Pump 2
Our Factory and Processing Capabilities

We operate three factories in China to meet diverse customer needs, equipped with advanced pressing, sintering and processing machinery.

Customizable Sliding Bearing SiC Sleeve for Canned Motor Pump 3 Customizable Sliding Bearing SiC Sleeve for Canned Motor Pump 4 Customizable Sliding Bearing SiC Sleeve for Canned Motor Pump 5
