SiC Thrust Washer for Canned Motor Pumps

  • SiC Thrust Washer for Canned Motor Pumps
  • SiC Thrust Washer for Canned Motor Pumps
  • SiC Thrust Washer for Canned Motor Pumps
  • SiC Thrust Washer for Canned Motor Pumps
  • SiC Thrust Washer for Canned Motor Pumps
Herkunftsort China
Markenname CSQ
Zertifizierung FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Modellnummer individuelle Produkte
Min Bestellmenge 20-50 PCs
Preis negotiable
Verpackung Informationen Schaumstoff+Kartonbox
Lieferzeit 20-45 Arbeitstage
Zahlungsbedingungen T/T
Versorgungsmaterial-Fähigkeit 2000pcs pro Monat

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Name Individuelles Keramikschieberlager Kategorie Keramikpumpe
Material Drucklos gesintertes Siliziumkarbid + Edelstahl Größe Nach den Zeichnungen angepasst
Verwenden Motorpumpe in Konserven Paket Schaumstoff+Kartonbox
Stichwort Motorpumpe in Konserven Typ entscheidender Übertragungsteil
Hinterlass eine Nachricht
Produkt-Beschreibung

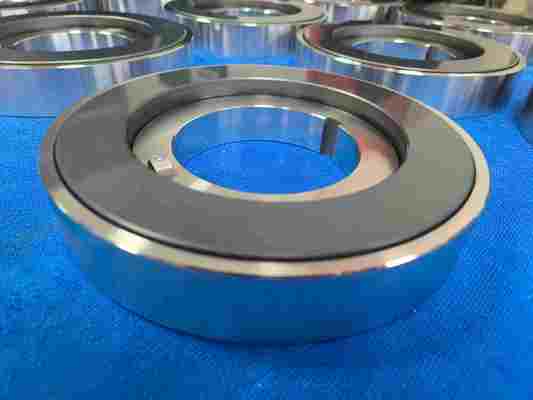

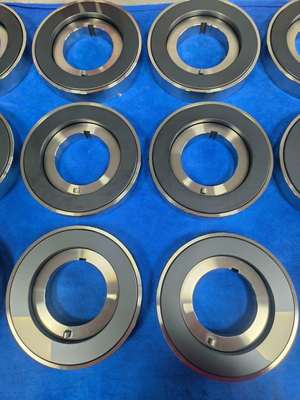

SiC Thrust Washer for Canned Motor Pumps
Silicon Carbide (SiC) Sleeve and Thrust Disc Assembly
Description of Sliding Bearing for Canned Motor Pump:

The Sleeve and Thrust Disc Assembly is a part of sliding bearing. It serves as a critical transmission component, functioning as both the support and rotational unit in canned motor pumps. Silicon carbide (SSiC), renowned for its outstanding corrosion resistance, wear resistance, and superior material properties, stands as one of the most ideal sliding bearing materials for such pumps.

Key Features:
  • Superior Wear Resistance: High hardness and low friction coefficient of SiC (SSiC/SiC) ensure extended service life.
  • Corrosion Resistance: Immune to acids, alkalis, and high-temperature fluids, ideal for aggressive media.
  • Thermal Stability: Low thermal expansion maintains dimensional accuracy under high-speed rotation.
  • Customizable: Available in standard or integrated designs to fit various pump models.
Typical Uses:
  • Chemical process pumps, nuclear coolant systems
  • High-purity fluid transfer (e.g., semiconductor-grade chemicals)
  • Sealless solutions for extreme pressure/temperature conditions
Main application of Canned Motor Pump:
  1. The canned motor pump can be used in common corrosive conditions, such as the medium of inorganic matter, acid, alkaline and salt. In such conditions, SSiC (sintered) is taken as standard sliding bearing.
  2. The canned motor pump can be used in common corrosive conditions, and the medium easy to vaporize.
Key properties of pressureless sintered silicon carbide:
Max Temperature up to 1650℃
Low density: 3.15-3.18 g/cm³
High strength
Low thermal expansion: 4.0 (10⁻⁶/℃)
High thermal conductivity: 120 W/m°K
High hardness: 2800 HV5
High elastic modulus: 410GPa
Superior chemical stability, resistance to acid and alkali corrosion (including hydrofluoric acid)

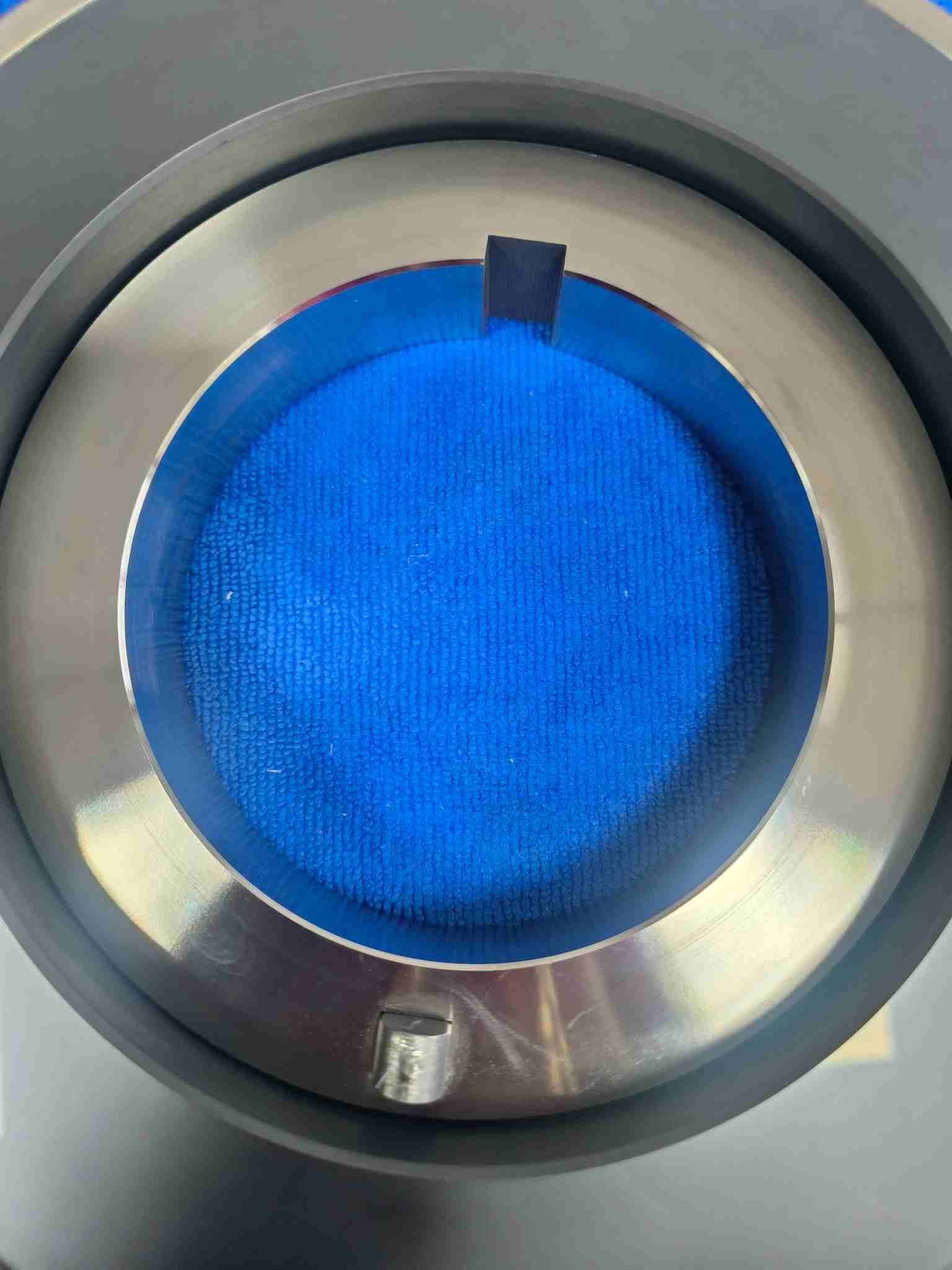

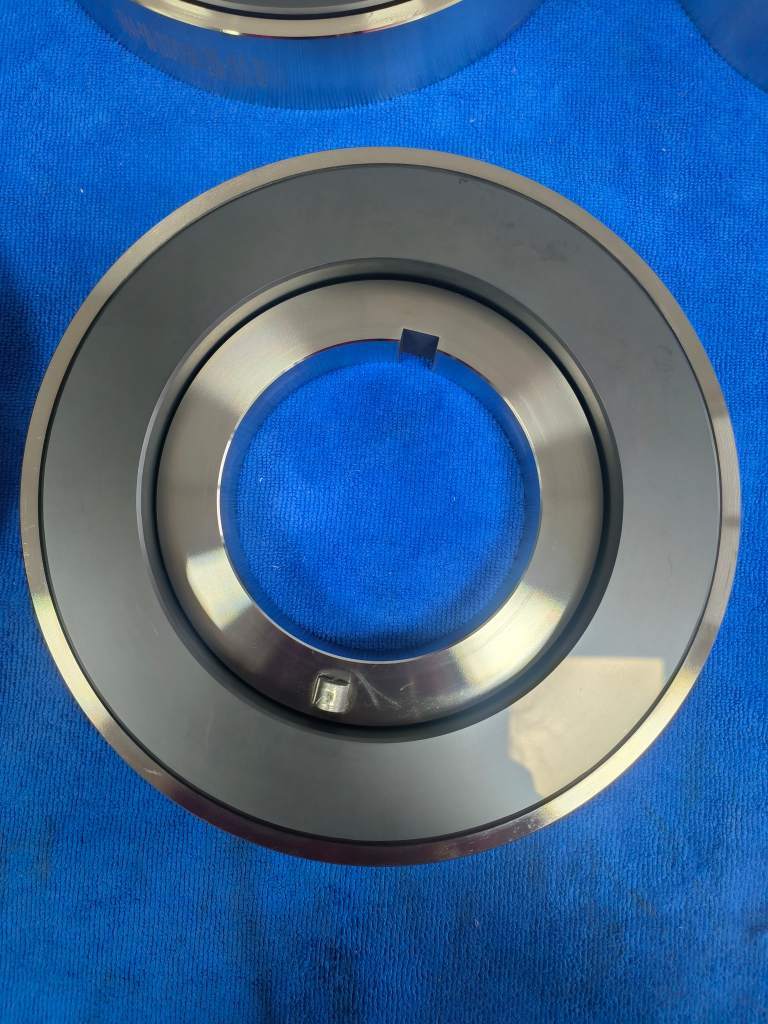

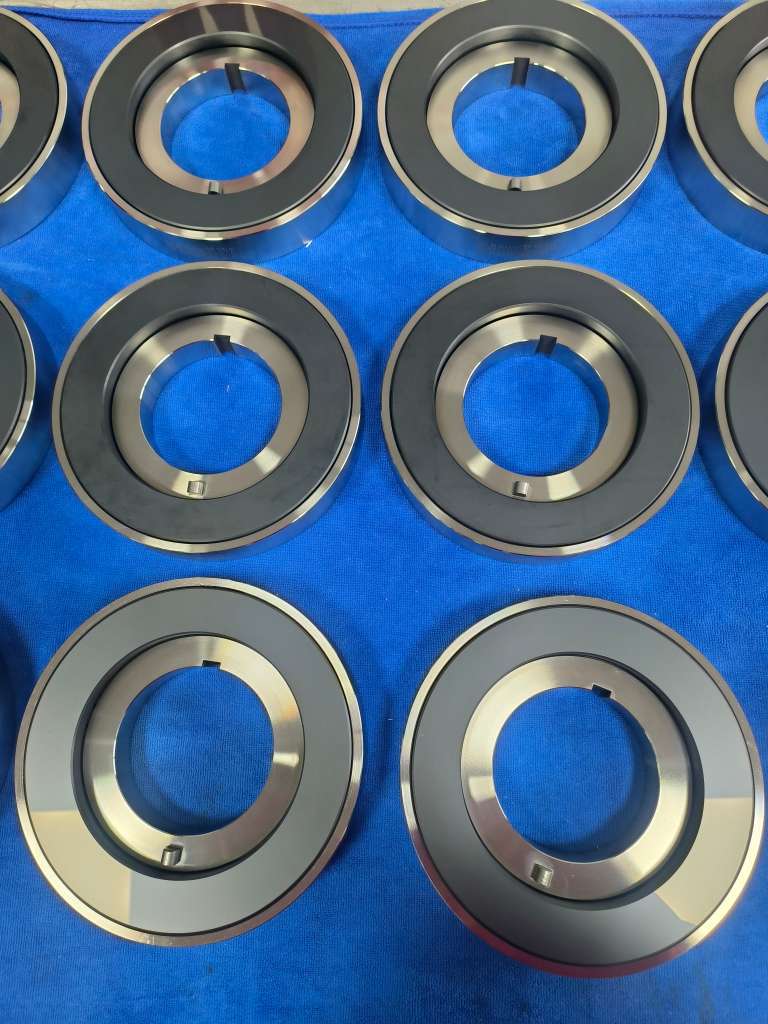

SiC Thrust Washer for Canned Motor Pumps 0
SiC Thrust Washer for Canned Motor Pumps 1

Our factory and processing machine:

We have three factories in China, can meet the needs for different customers, and also we have advanced pressing, sintering and processing machines.

SiC Thrust Washer for Canned Motor Pumps 2
SiC Thrust Washer for Canned Motor Pumps 3
SiC Thrust Washer for Canned Motor Pumps 4
