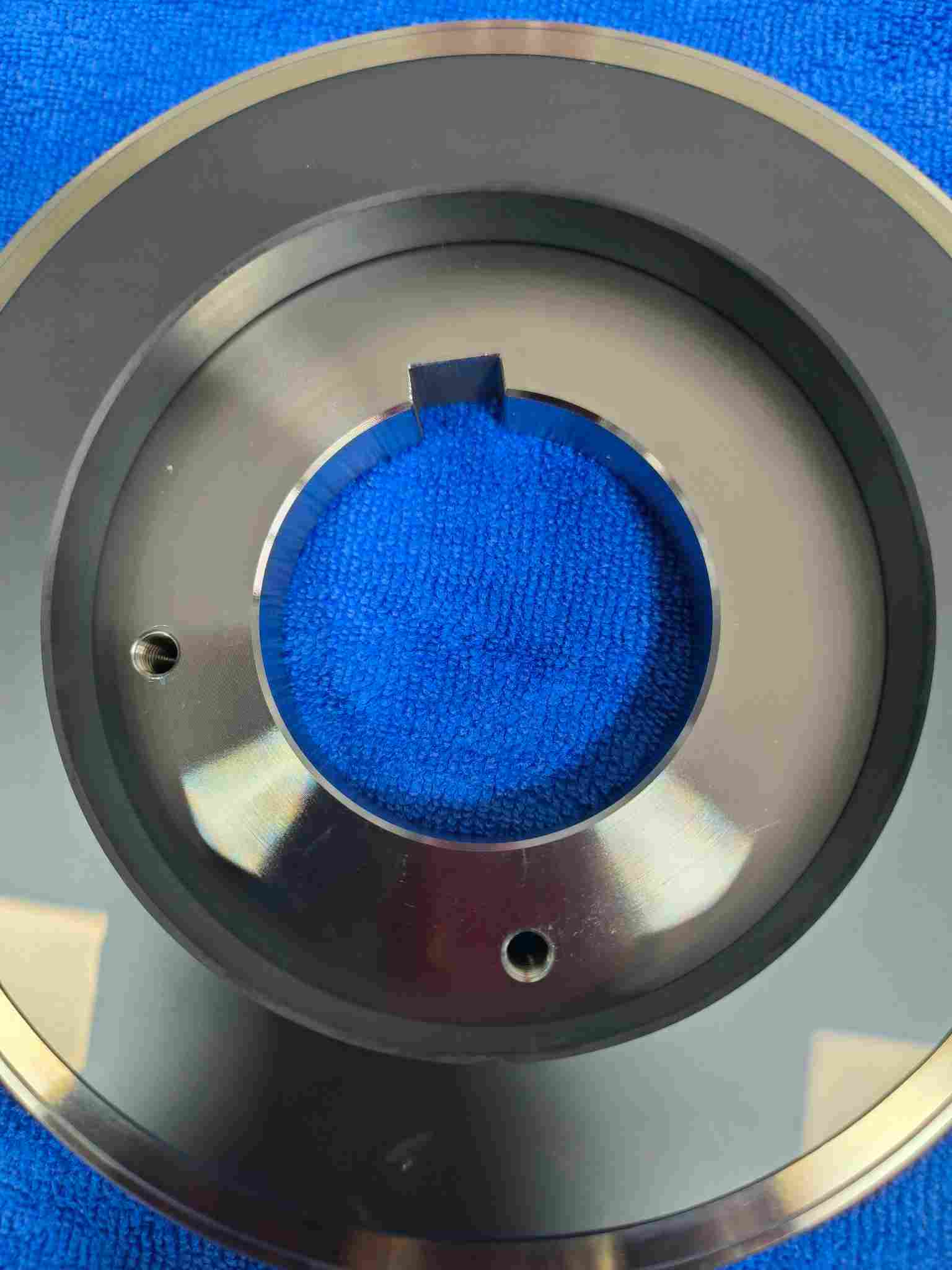

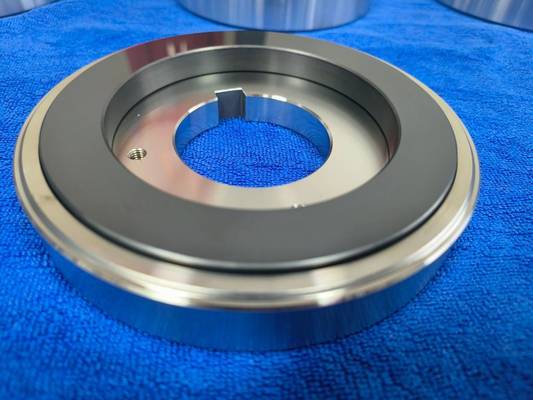

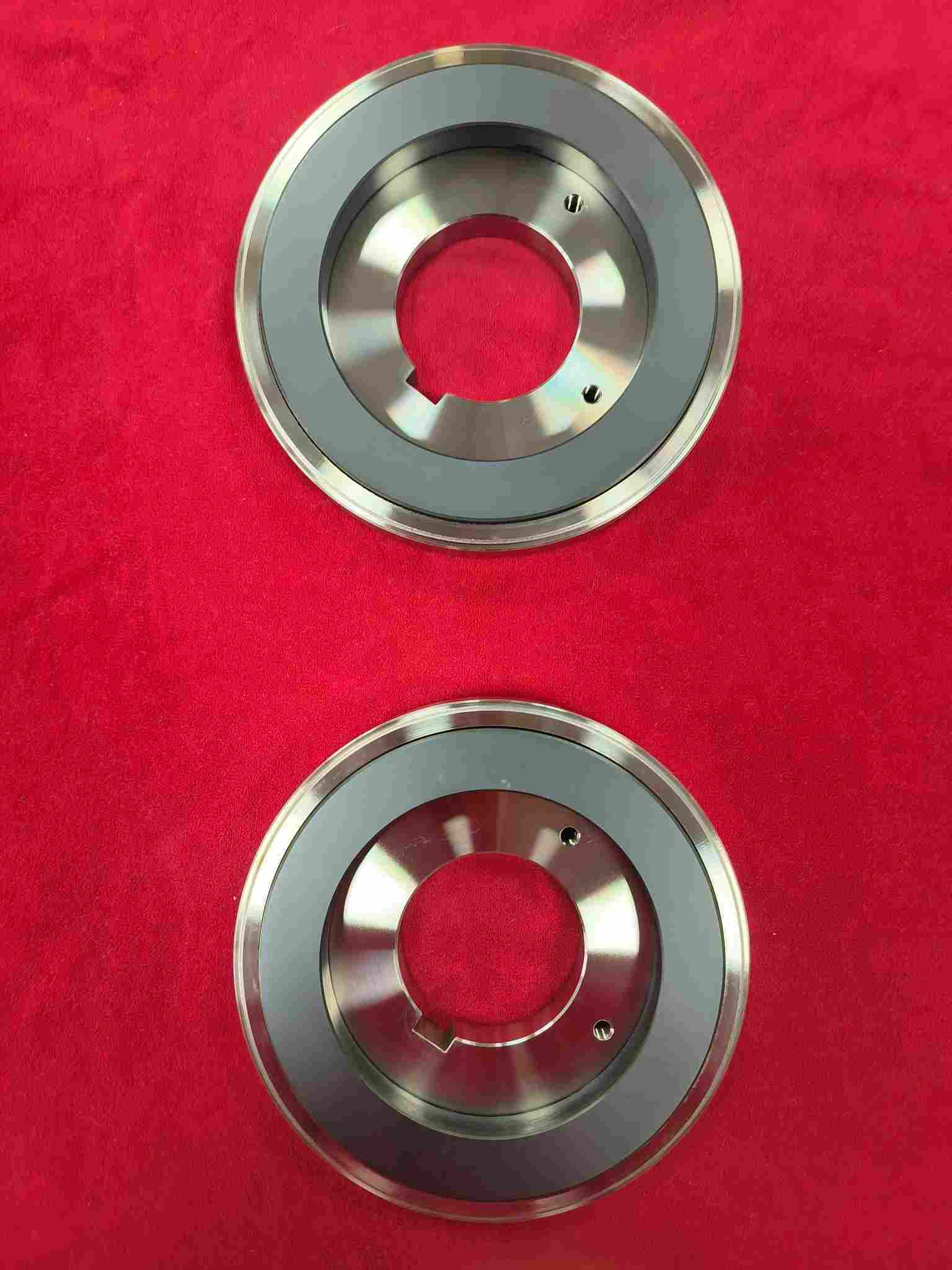

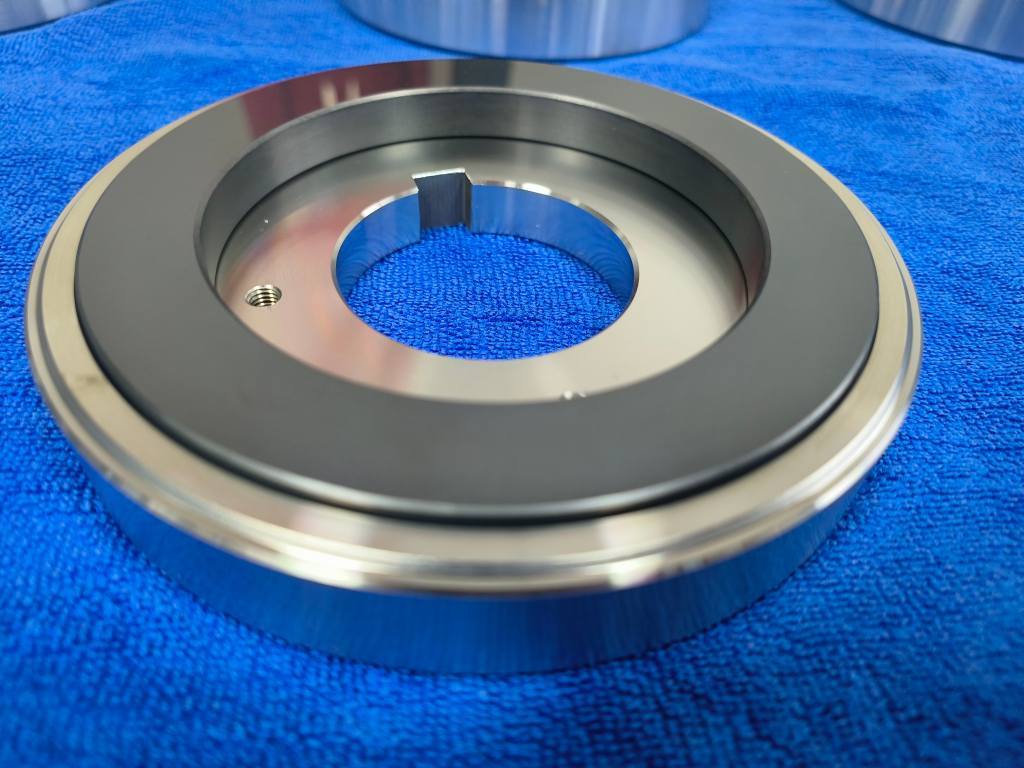

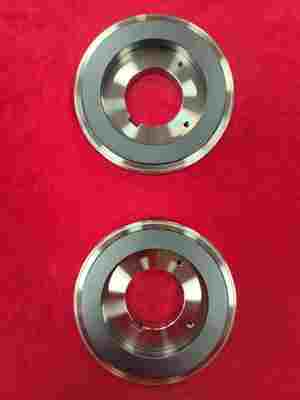

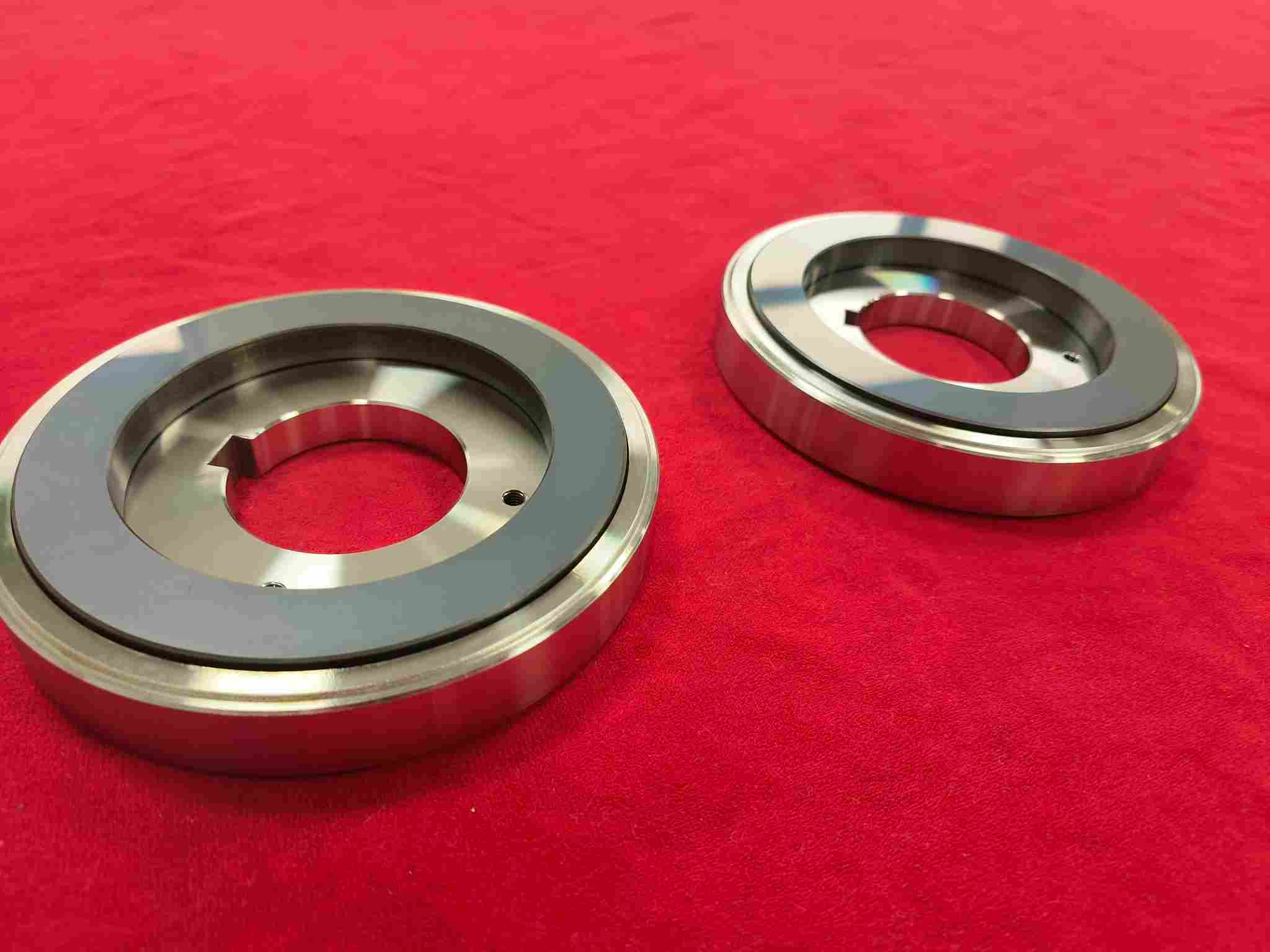

Thrust Washer with Pressureless Sintered Silicon Carbide for Canned Motor Pumps
| Herkunftsort | China |
|---|---|
| Markenname | CSQ |
| Zertifizierung | FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001 |
| Modellnummer | individuelle Produkte |
| Min Bestellmenge | 20-50 PCs |
| Preis | negotiable |
| Verpackung Informationen | Schaumstoff+Kartonbox |
| Lieferzeit | 20-45 Arbeitstage |
| Zahlungsbedingungen | T/T |
| Versorgungsmaterial-Fähigkeit | 2000pcs pro Monat |
Produktdetails
| Name | Individuelles Keramikschieberlager | Kategorie | Keramikpumpe |
|---|---|---|---|
| Material | Drucklos gesintertes Siliziumkarbid + Edelstahl | Größe | Nach den Zeichnungen angepasst |
| Verwenden | Motorpumpe in Konserven | Paket | Schaumstoff+Kartonbox |
| Stichwort | Motorpumpe in Konserven | Typ | entscheidender Übertragungsteil |
| Hervorheben | Pressureless Sintered Silicon Carbide Thrust Washer,Thermal Stability Ceramic Sliding Bearing,Customizable Silicon Carbide Bearing |
||
Produkt-Beschreibung
SiC Thrust Washer for Canned Motor Pumps
Silicon Carbide (SiC) Sleeve and Thrust Disc Assembly
The Sleeve and Thrust Disc Assembly is a critical component of sliding bearings, serving as both the support and rotational unit in canned motor pumps. Silicon carbide (SSiC) is renowned for its outstanding corrosion resistance, wear resistance, and superior material properties, making it one of the most ideal sliding bearing materials for such pumps.
Key Features
- Superior Wear Resistance: High hardness and low friction coefficient of SiC (SSiC/SiC) ensure extended service life.
- Corrosion Resistance: Immune to acids, alkalis, and high-temperature fluids, ideal for aggressive media.
- Thermal Stability: Low thermal expansion maintains dimensional accuracy under high-speed rotation.
- Customizable: Available in standard or integrated designs to fit various pump models.
Typical Applications
- Chemical process pumps, nuclear coolant systems
- High-purity fluid transfer (e.g., semiconductor-grade chemicals)
- Sealless solutions for extreme pressure/temperature conditions
Main Applications of Canned Motor Pumps
- Common corrosive conditions, such as inorganic matter, acid, alkaline and salt media (SSiC is standard sliding bearing material)
- Corrosive conditions with media prone to vaporization
Key Properties of Pressureless Sintered Silicon Carbide
| Property | Value |
|---|---|
| Max Temperature | Up to 1650℃ |
| Density | 3.15-3.18 g/cm³ |
| Thermal Expansion | 4.0 (10⁻⁶/℃) |
| Thermal Conductivity | 120 W/m°K |
| Hardness | 2800 HV5 |
| Elastic Modulus | 410GPa |
| Chemical Stability | Superior resistance to acid and alkali corrosion (including hydrofluoric acid) |
Silicon Carbide Sleeve for Canned Motor Pump
Our Manufacturing Capabilities
We operate three factories in China to meet diverse customer needs, equipped with advanced pressing, sintering and processing machines.
Factory Production Facility
Advanced Processing Machines
Manufacturing Equipment
