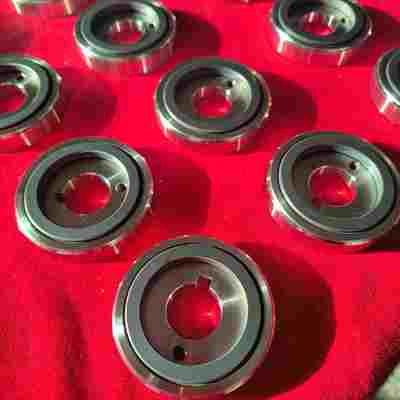

SiC Thrust Washer Sliding Bearing for Canned Motor Pump

  • SiC Thrust Washer Sliding Bearing for Canned Motor Pump
  • SiC Thrust Washer Sliding Bearing for Canned Motor Pump
  • SiC Thrust Washer Sliding Bearing for Canned Motor Pump
  • SiC Thrust Washer Sliding Bearing for Canned Motor Pump
  • SiC Thrust Washer Sliding Bearing for Canned Motor Pump
Herkunftsort China
Markenname CSQ
Zertifizierung FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Modellnummer individuelle Produkte
Min Bestellmenge 20-50 PCs
Preis negotiable
Verpackung Informationen Schaumstoff+Kartonbox
Lieferzeit 20-45 Arbeitstage
Zahlungsbedingungen T/T
Versorgungsmaterial-Fähigkeit 2000pcs pro Monat

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Name Individuelles Keramikschieberlager Kategorie Keramikpumpe
Material Drucklos gesintertes Siliziumkarbid + Edelstahl Größe Nach den Zeichnungen angepasst
Verwenden Motorpumpe in Konserven Paket Schaumstoff+Kartonbox
Stichwort Motorpumpe in Konserven Typ entscheidender Übertragungsteil
Hervorheben

Thermal Stable SiC Sleeve Sliding Bearing

,

High Hardness Ceramic Sliding Bearing

,

Low Thermal Expansion Canned Motor Pump Bearing
Sie können die gewünschten Produkte ankreuzen und im Message Board mit uns kommunizieren.
Hinterlass eine Nachricht
Produkt-Beschreibung
SiC Sleeve Sliding Bearing for Canned Motor Pump
The Silicon Carbide (SiC) Sleeve and Thrust Disc Assembly is a critical transmission component serving as both the support and rotational unit in canned motor pumps. Silicon carbide (SSiC), renowned for its outstanding corrosion resistance, wear resistance, and superior material properties, stands as one of the most ideal sliding bearing materials for such pumps.
Key Features
  • Superior Wear Resistance: High hardness and low friction coefficient of SiC (SSiC/SiC) ensure extended service life.
  • Corrosion Resistance: Immune to acids, alkalis, and high-temperature fluids, ideal for aggressive media.
  • Thermal Stability: Low thermal expansion maintains dimensional accuracy under high-speed rotation.
  • Customizable: Available in standard or integrated designs to fit various pump models.
Typical Uses
  • Chemical process pumps, nuclear coolant systems
  • High-purity fluid transfer (e.g., semiconductor-grade chemicals)
  • Sealless solutions for extreme pressure/temperature conditions
Main Application of Canned Motor Pump
  1. The canned motor pump can be used in common corrosive conditions, such as the medium of inorganic matter, acid, alkaline and salt. In such conditions, SSiC (sintered) is taken as standard sliding bearing.
  2. The canned motor pump can be used in common corrosive conditions with media that are easy to vaporize.
Key Properties of Pressureless Sintered Silicon Carbide
Property Value
Max Temperature up to 1650℃
Low density 3.15-3.18 g/cm3
Low thermal expansion 4.0 (10-6/℃)
High thermal conductivity 120 W/m°K
High hardness 2800 HV5
High elastic modulus 410GPa
Chemical stability Superior resistance to acid and alkali corrosion (including hydrofluoric acid)

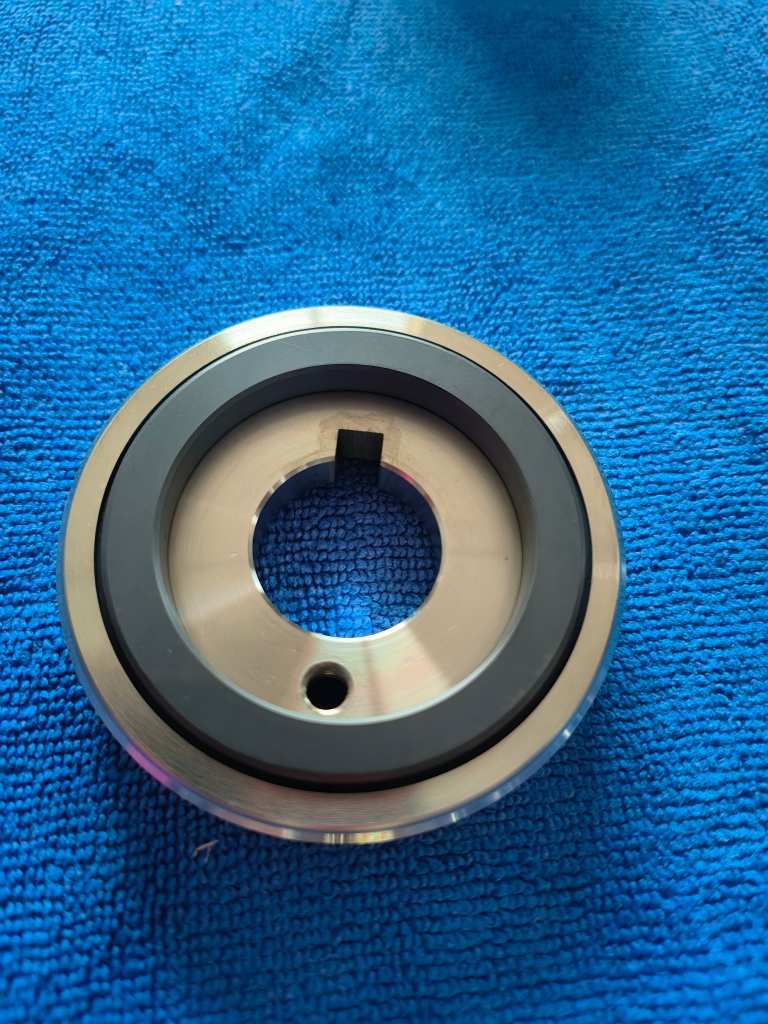

SiC Thrust Washer Sliding Bearing for Canned Motor Pump 0

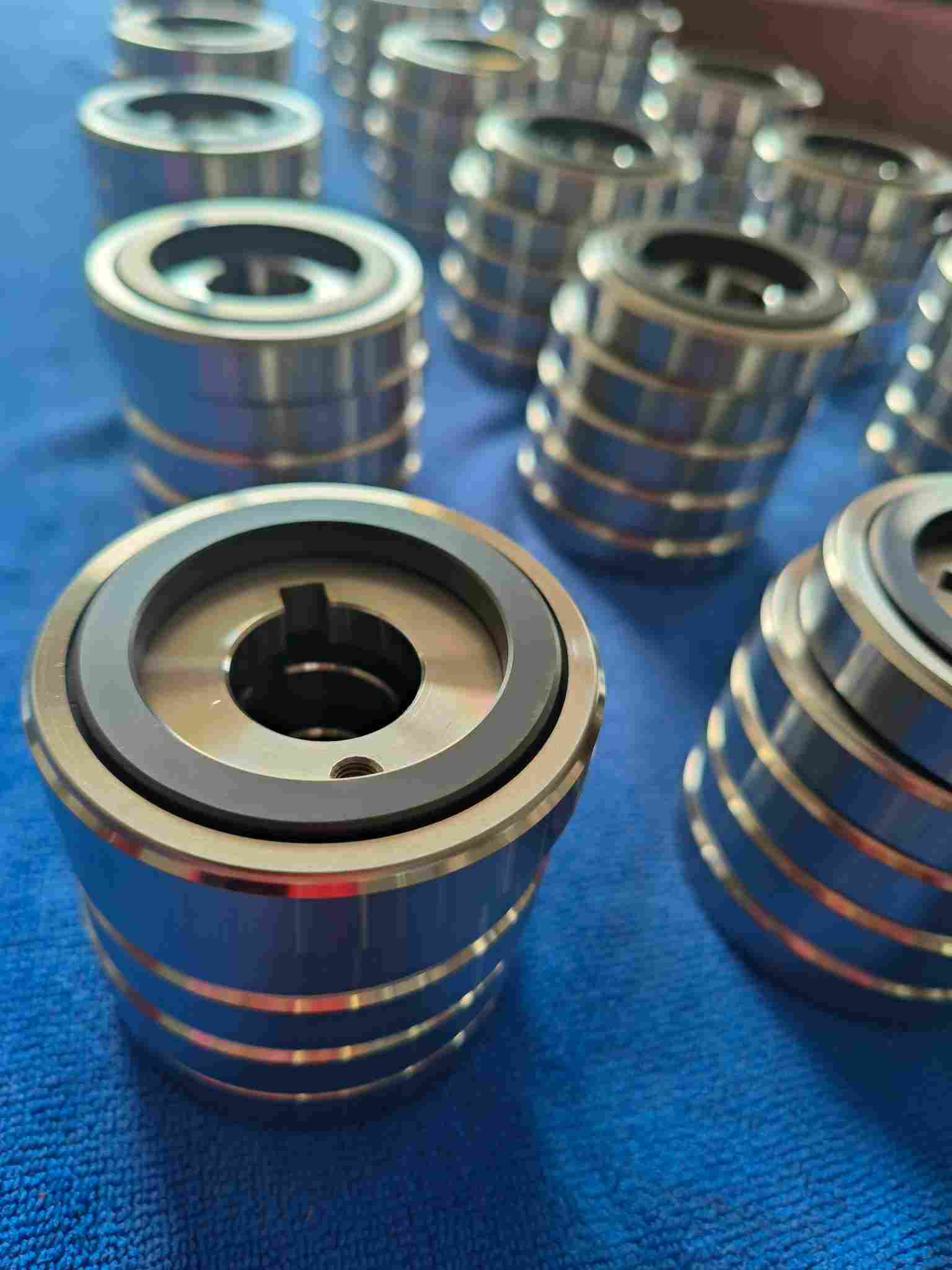

SiC Thrust Washer Sliding Bearing for Canned Motor Pump 1

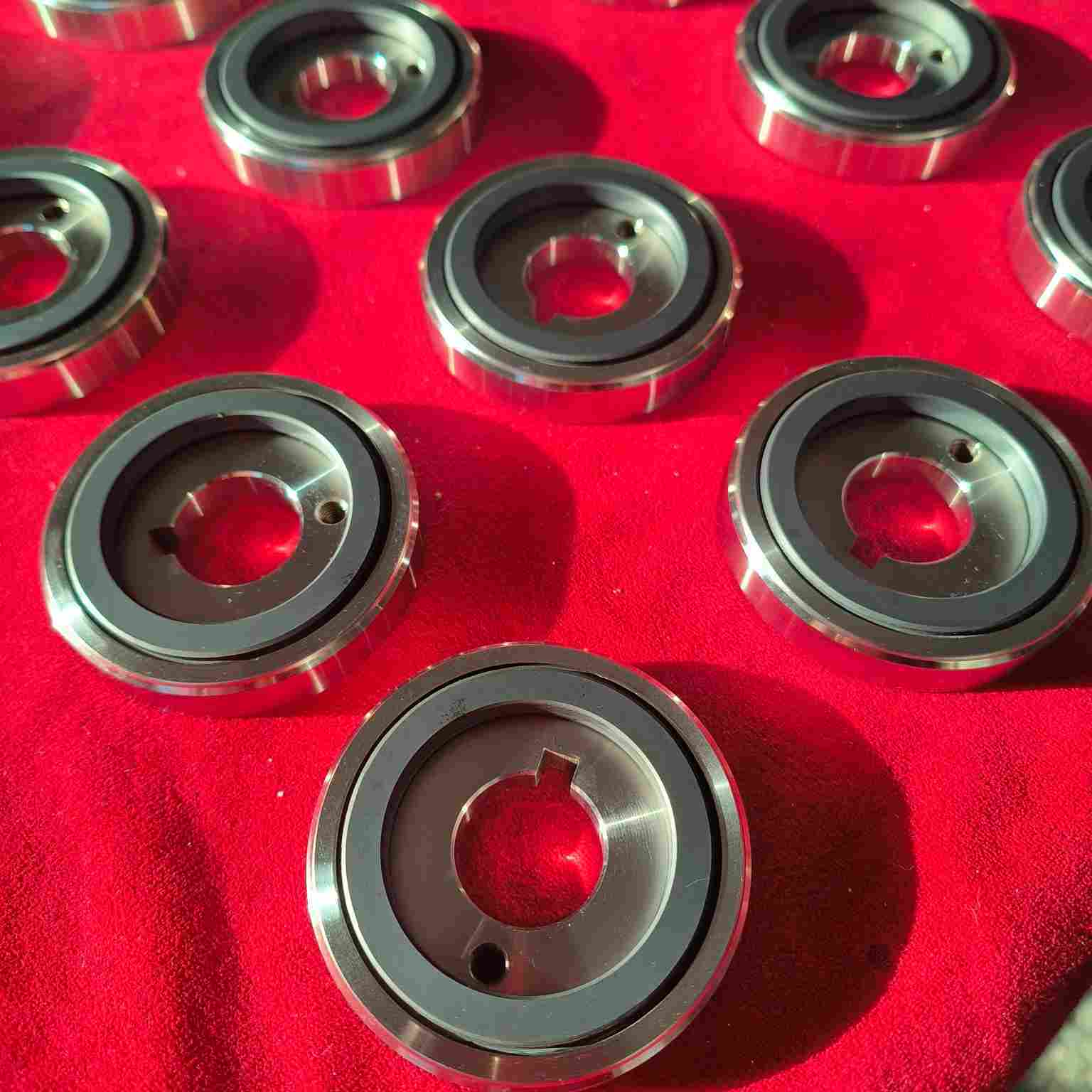

SiC Thrust Washer Sliding Bearing for Canned Motor Pump 2
Our Factory and Processing Machines
We have three factories in China to meet different customer needs, equipped with advanced pressing, sintering and processing machines.

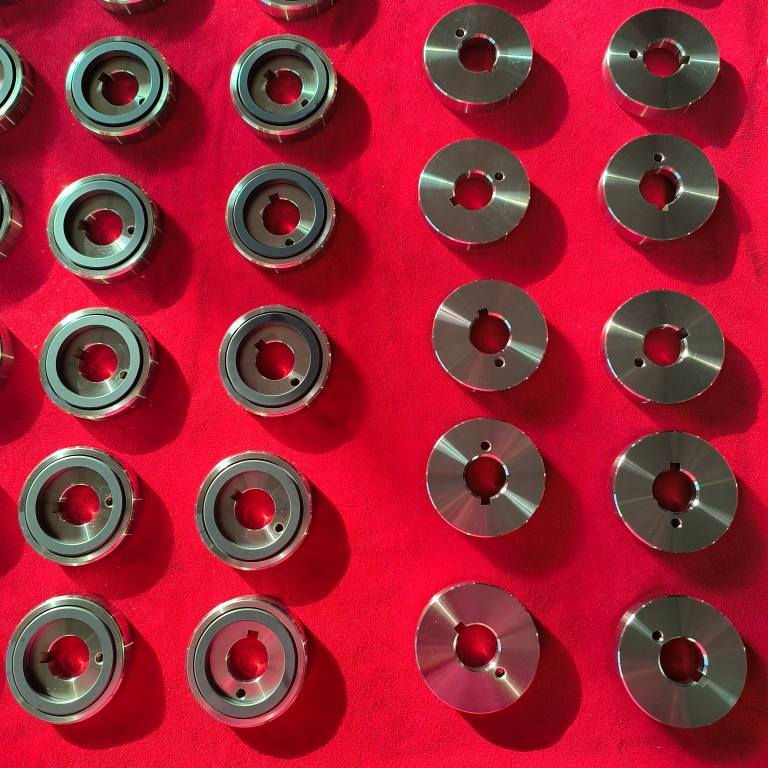

SiC Thrust Washer Sliding Bearing for Canned Motor Pump 3
SiC Thrust Washer Sliding Bearing for Canned Motor Pump 4
SiC Thrust Washer Sliding Bearing for Canned Motor Pump 5
