Self-Lubricating Silicon Carbide Ceramic Sliding Bearing Sleeve with Thermal Shock Resistance

  • Self-Lubricating Silicon Carbide Ceramic Sliding Bearing Sleeve with Thermal Shock Resistance
  • Self-Lubricating Silicon Carbide Ceramic Sliding Bearing Sleeve with Thermal Shock Resistance
  • Self-Lubricating Silicon Carbide Ceramic Sliding Bearing Sleeve with Thermal Shock Resistance
  • Self-Lubricating Silicon Carbide Ceramic Sliding Bearing Sleeve with Thermal Shock Resistance
Herkunftsort China
Markenname CSQ
Zertifizierung FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Modellnummer individuelle Produkte
Min Bestellmenge 20-50 PCs
Preis negotiable
Verpackung Informationen Schaumstoff+Kartonbox
Lieferzeit 20-45 Arbeitstage
Zahlungsbedingungen T/T
Versorgungsmaterial-Fähigkeit 2000pcs pro Monat

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Name Individuelles keramisches Schiebenhülsenlager Kategorie Keramikschieberlager
Material Siliziumkarbid Größe Nach den Zeichnungen angepasst
Anwendung Pumps Paket Schaumstoff+Kartonbox
Qualität Hohe Präzision, langes Leben, OEM Serive Spezifikation Standardgröße und angepasst
Hervorheben

OEM Service Ceramic Sliding Bearing

,

Self-Lubricating SiC Bearing Sleeve

,

Thermal Shock Resistance Silicon Carbide Bearing
Sie können die gewünschten Produkte ankreuzen und im Message Board mit uns kommunizieren.
Hinterlass eine Nachricht
Produkt-Beschreibung
Silicon Carbide Ceramic Sliding Bearing Sleeve
High-Performance Ceramic Components for Extreme Environments

Silicon Carbide (SiC) sleeves are precision-engineered ceramic components offering exceptional wear resistance, corrosion resistance, high hardness, and thermal stability. Ideal for bearings, seals, and transmission systems in demanding applications across chemical processing, machinery, semiconductor, and energy industries.

Key Features
  • Superior Hardness & Wear Resistance: Mohs hardness of 9.5 (second only to diamond) ensures extended service life
  • Excellent Corrosion Resistance: Withstands strong acids, alkalis, and organic solvents
  • High-Temperature Stability: Maintains performance up to 1400°C without oxidation or deformation
  • Low Thermal Expansion: High thermal conductivity and thermal shock resistance for rapid temperature cycling
  • Self-Lubricating: Low friction coefficient reduces energy consumption and maintenance
Applications
  • Chemical Industry: Pumps, valves, reactor seals
  • Machinery: High-speed bearings, precision components
  • Semiconductors: Wafer handling fixtures
  • New Energy: Photovoltaic and lithium battery production equipment
Technical Properties
Property Value
Max Temperature up to 1650℃
Density 3.15-3.18 g/cm³
Thermal Expansion 4.0 (10⁻⁶/℃)
Thermal Conductivity 120 W/m°K
Hardness 2800 HV5
Elastic Modulus 410GPa
Chemical Stability Superior resistance to acid and alkali corrosion (including hydrofluoric acid)
Self-Lubricating Silicon Carbide Ceramic Sliding Bearing Sleeve with Thermal Shock Resistance 0
Advantages vs. Steel Bearings
  • Higher Temperature Resistance: Superior mechanical stability at elevated temperatures
  • Better Thermal Cycling Performance: Minimal clearance changes under temperature fluctuations
  • Anti-Seizure Properties: Reduced thermal deformation minimizes friction-induced binding
  • Oil-Free Operation: Self-lubricating properties enable reliable performance in high-vacuum environments
  • Exceptional Corrosion Resistance: Impervious to acids, alkalis, and salts
  • Electrical Insulation: Non-conductive, eliminating static discharge
  • Non-Magnetic: Prevents magnetic particle adhesion in sensitive environments

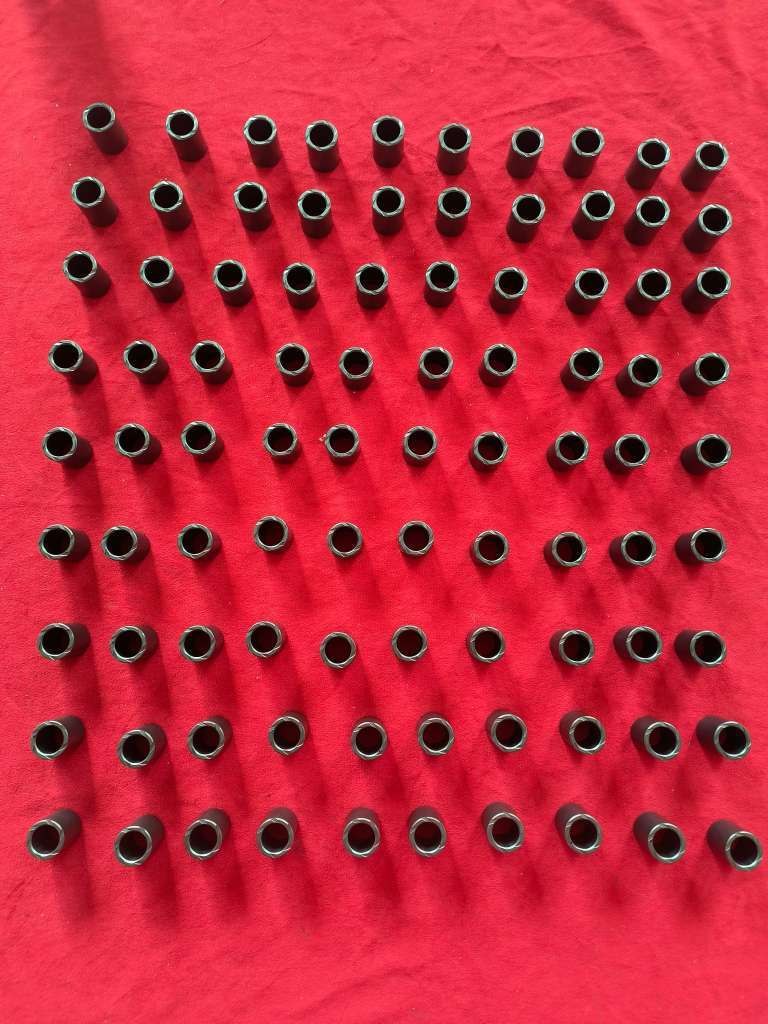

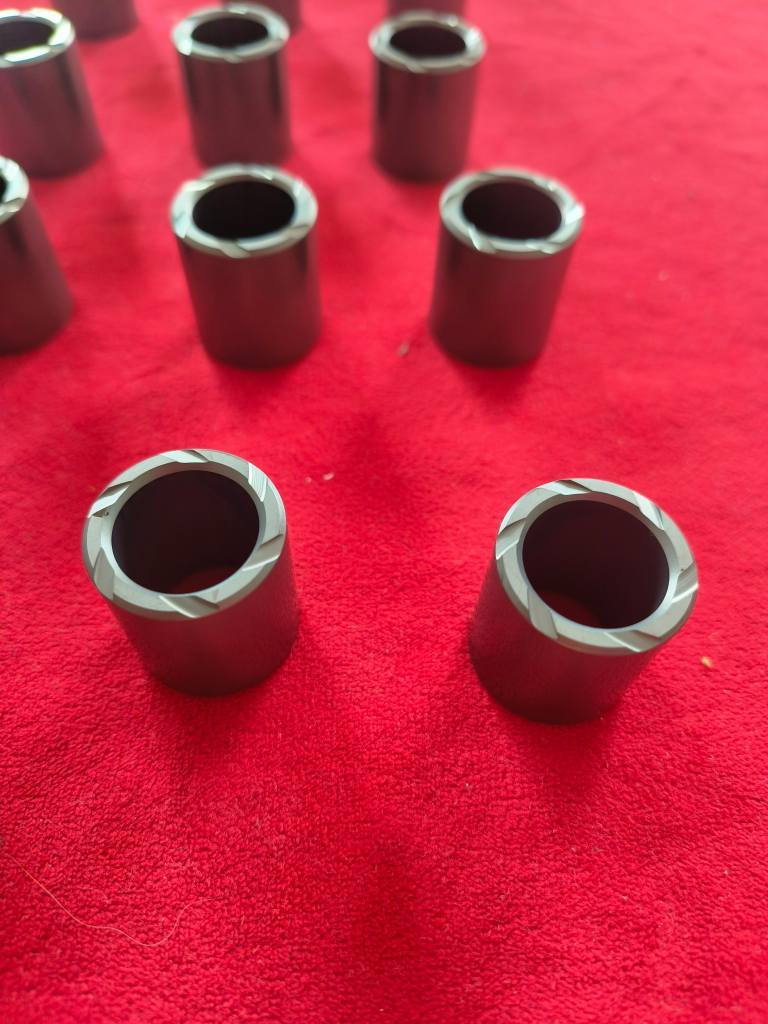

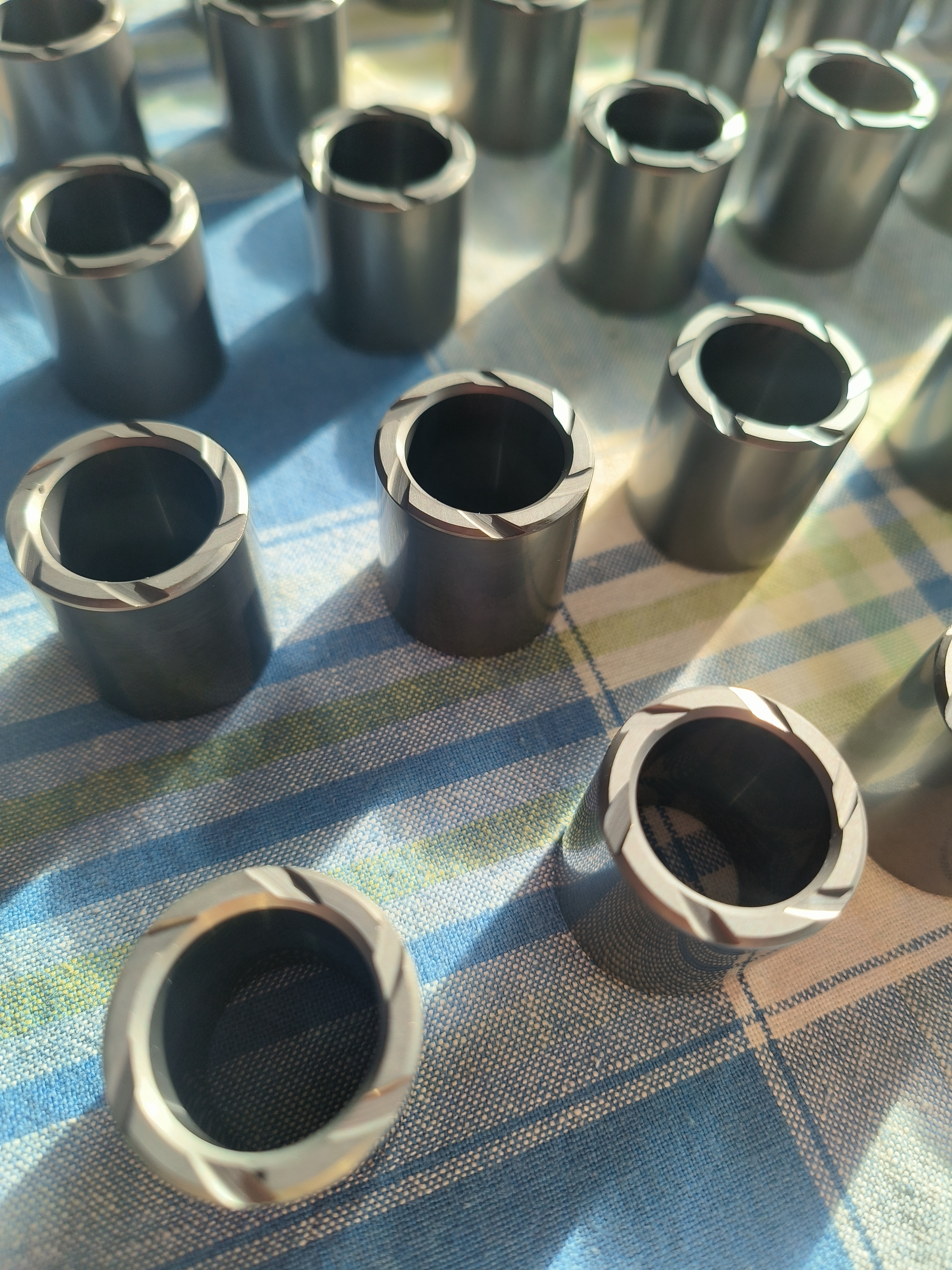

Self-Lubricating Silicon Carbide Ceramic Sliding Bearing Sleeve with Thermal Shock Resistance 1 Self-Lubricating Silicon Carbide Ceramic Sliding Bearing Sleeve with Thermal Shock Resistance 2
Our Manufacturing Capabilities

With three factories in China equipped with advanced pressing, sintering and processing machines, we meet diverse customer needs under our ZXSQ and CSQ brands. Holding eleven invention patents, our professional team delivers high-quality ceramic bearing solutions.

40+ Years of Expertise

Since 1982, we've continuously improved materials, processing techniques, and equipment, becoming a leader in China's ceramic bearing market. We have extensive experience producing silicon carbide sliding bearings, including supplying SSiC bearings to Germany's Witte for many years.

Self-Lubricating Silicon Carbide Ceramic Sliding Bearing Sleeve with Thermal Shock Resistance 3 Self-Lubricating Silicon Carbide Ceramic Sliding Bearing Sleeve with Thermal Shock Resistance 4 Self-Lubricating Silicon Carbide Ceramic Sliding Bearing Sleeve with Thermal Shock Resistance 5
Our Service Advantages
  • Free sample bearings available
  • ISO Standard compliant
  • In-stock bearings ready for immediate shipment
  • Small order quantities accepted
  • OEM bearing services
  • Customized bearings based on your drawings or samples
  • Competitive factory pricing
Frequently Asked Questions
Who are we?
We are a factory in Beijing, China with over 40 years of experience producing ceramic bearings, having established cooperative relationships with many domestic and international companies.
How do we guarantee quality?
We produce samples before mass production and strictly follow customer requirements. Our quality control includes precise inspection using specialized equipment, with foam and carton packaging for double protection.
What products do we offer?
We provide ceramic deep groove ball bearings, angular contact ball bearings, hybrid ceramic ball bearings, linear bearings, and various ceramic balls.
Why choose us over other suppliers?
As an integrated company with three factories and modern production equipment, we offer better delivery times and product quality at competitive prices.
What services do we provide?
We offer high-quality products, full customization, and sample confirmation services to meet your specific requirements.
Ready to Partner With Us?

We maintain strong relationships with raw material suppliers to ensure consistent quality and stable pricing. Customer satisfaction is our priority - we provide excellent products and after-sales service, creating value as your trusted partner. Contact us today to discuss potential cooperation!
